Duo Reflex OneTube Kit

Duo Reflex OneTube Kit; Electrical Research (ID = 1035882) Kit
Duo Reflex OneTube Kit; Electrical Research (ID = 1468930) Kit Duo Reflex OneTube Kit; Electrical Research (ID = 1468932) Kit
Use red slider bar for more.
Duo Reflex OneTube Kit; Electrical Research (ID = 1468930) Kit

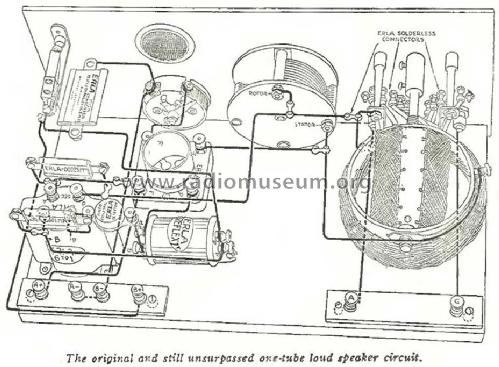

Electrical Research: Duo Reflex OneTube Kit [Kit] ID = 1468930 930x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model Duo Reflex OneTube Kit, Electrical Research Laboratories Inc. (Erla); Chicago, Illinois:
Citizens Radio Call Book, May 1924, p. 148

Country:  United States of America (USA)
Manufacturer / Brand:  Electrical Research Laboratories Inc. (Erla); Chicago, Illinois
Year: 1924 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 1:
Main principle TRF without regeneration; Reflex
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Duo Reflex OneTube Kit - Electrical Research
Material Various materials
Price in first year of sale 27.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Literature/Schematics (2) Citizens Radio Call Book, May 1924, p. 148


All listed radios etc. from Electrical Research Laboratories Inc. (Erla); Chicago, Illinois
Here you find 131 models, 45 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
