Duet KY176
Erres, Van der Heem NV; Den Haag
- Country
- Netherlands
- Manufacturer / Brand
- Erres, Van der Heem NV; Den Haag
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94398

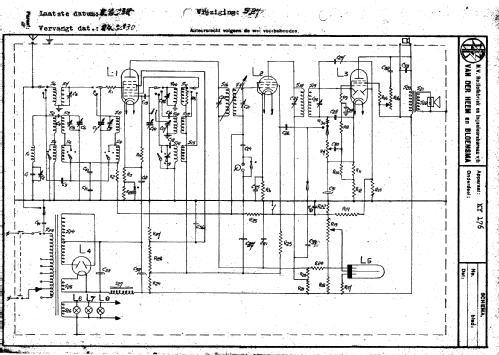

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 110 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 110/250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

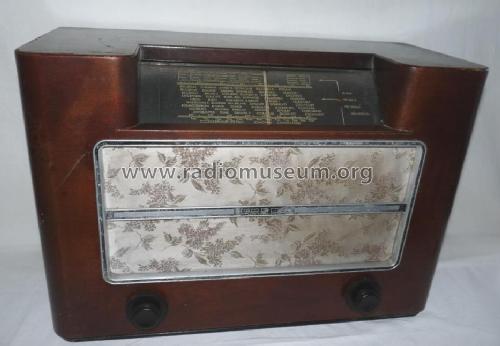

- Model: Duet KY176 - Erres, Van der Heem NV; Den
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 380 x 250 mm / 21.3 x 15 x 9.8 inch
- Net weight (2.2 lb = 1 kg)
- 14.8 kg / 32 lb 9.6 oz (32.599 lb)
- Price in first year of sale
- 135.00 Hfl
- Literature/Schematics (1)
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by John Koster. See "Data change" for further contributors.
