- Country
- Netherlands
- Manufacturer / Brand
- Erres, Van der Heem NV; Den Haag
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94564
From auction website Marktplaats.nl.

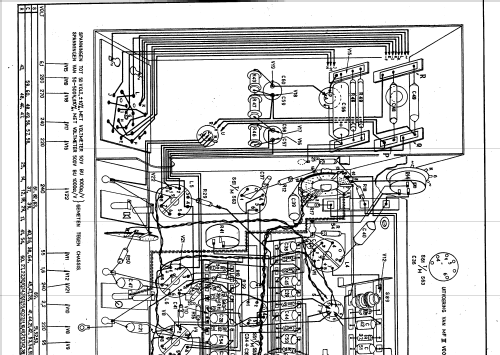

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 452 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: KY477 - Erres, Van der Heem NV; Den
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 365 x 280 mm / 23.6 x 14.4 x 11 inch
- Net weight (2.2 lb = 1 kg)
- 15.5 kg / 34 lb 2.3 oz (34.141 lb)
- Price in first year of sale
- 575.00 Hfl
- Mentioned in
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by John Koster. See "Data change" for further contributors.
