Erres, Van der Heem: RS1283 /01F [Radio] ID = 1913366 965x729
Select picture or schematic to display from thumbnails on the right and click for download.
For model RS1283 /01F, Erres, Van der Heem NV; Den Haag:

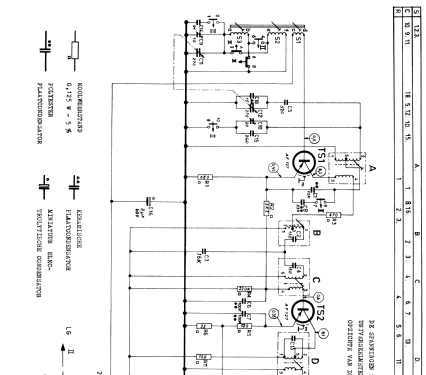

Aus dem Servicemanual

Country:  Netherlands
Manufacturer / Brand:  Erres, Van der Heem NV; Den Haag
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF127 AF127 AC127 AC127 AC126 AC132
Main principle Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RS1283 /01F - Erres, Van der Heem NV; Den
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 110 x 50 mm / 7.9 x 4.3 x 2 inch
Notes

Taschenradio mit Mittel- und Langwelle.

Siehe auch Philips 11RL274T.

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
