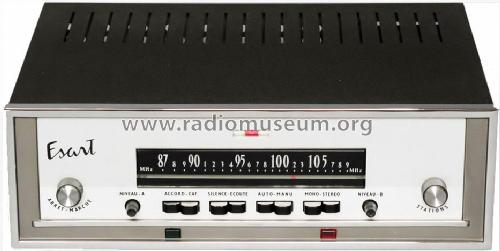

Tuner FMD; Esart; Paris (ID = 1328065) Radio
Esart; Paris: Tuner FMD [Radio] ID = 1328065 933x469
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tuner FMD, Esart; Paris:
web inconnu

Country:  France
Manufacturer / Brand:  Esart; Paris
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 EF89 EF94 EF80 EM840 ECC82 ECC82 ECC82 ECF80
Main principle Superhet with RF-stage
Tuned circuits 11 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Tuner FMD - Esart; Paris
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 125 x 245 mm / 13.4 x 4.9 x 9.6 inch
Notes

Esart Tuner FMD. 87 - 108 MHz, stéréophonique, tuning indicator tube, 55 VA power consumption

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Jean Marchal. See "Data change" for further contributors.



All listed radios etc. from Esart; Paris
Here you find 13 models, 13 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
