• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 39249

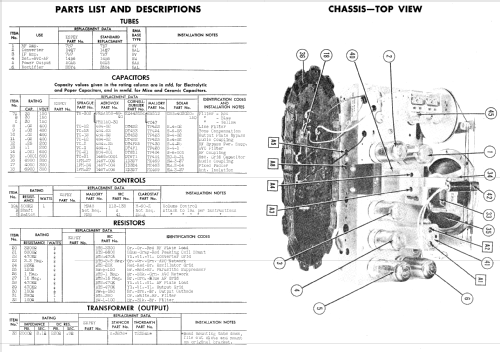

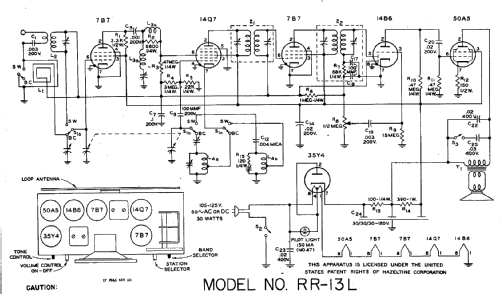

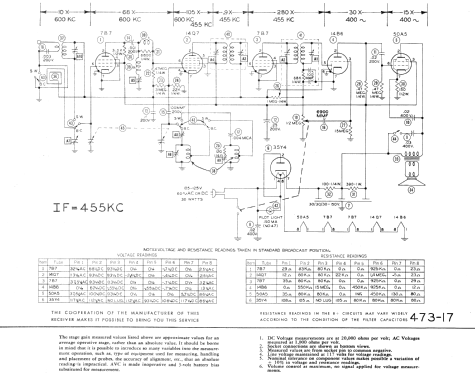

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RR13L - Espey Mfg. Co., Inc.; New York
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • BC and SW (5.7-16.0 MHz) bands. Built-in loop antenna for BC band.
    The Espey model RR13L is an AC-DC 2-Band Superheterodyne with Self Contained Loop Antenna.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
