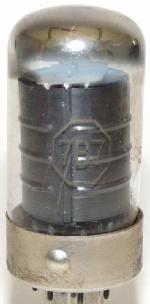

7B7

Information - Help
ID = 2855

Country:
United States of America (USA)
Brand:
Developer: Philco, Philadelphia Stg. Batt. Co.; USA
Tube type:  Vacuum Pentode   RF/IF-Stage   Controlling (mu)
Identical to 7B7
Similar Tubes
Normally replaceable-slightly different:
  7B7E
Other class quality (otherwise equal):
  CV522
Other base:
  6SS7 ; 6SS7GT
First Source (s)
09.Dec.1938 : Electron Tube Registration List 152
Predecessor Tubes 6S7G
Successor Tubes 6BJ6
Base Loctal-8, B8G (Sylvania, 1938) (Codex=W)
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.15 Ampere / Indirect / Specified voltage AND current AC/DC
Tube prices 3 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49
7B7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Anonymous 10 Collector
358_1.png 7B7: Telefunken Werkstattbuch
Wolfgang Bauer
More ...
Just Qvigstad 		7b7_techdat01.png
7B7: Sylvania Technical Manual
Peter Hoddow
More ...
Usage in Models 13= 1938 ; 1= 1939?? ; 7= 1939? ; 87= 1939 ; 3= 1940?? ; 6= 1940? ; 76= 1940 ; 1= 1941?? ; 3= 1941? ; 73= 1941 ; 1= 1942?? ; 3= 1942? ; 5= 1942 ; 1= 1945?? ; 4= 1945? ; 2= 1945 ; 4= 1946?? ; 8= 1946? ; 36= 1946 ; 3= 1947?? ; 7= 1947? ; 26= 1947 ; 2= 1948?? ; 4= 1948? ; 45= 1948 ; 4= 1949?? ; 12= 1949? ; 35= 1949 ; 10= 1950?? ; 5= 1950? ; 35= 1950 ; 23= 1951? ; 25= 1951 ; 3= 1952?? ; 3= 1952? ; 18= 1952 ; 2= 1953?? ; 3= 1953? ; 16= 1953 ; 1= 1954?? ; 1= 1954? ; 12= 1954 ; 3= 1955?? ; 3= 1955? ; 3= 1955 ; 1= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):639
