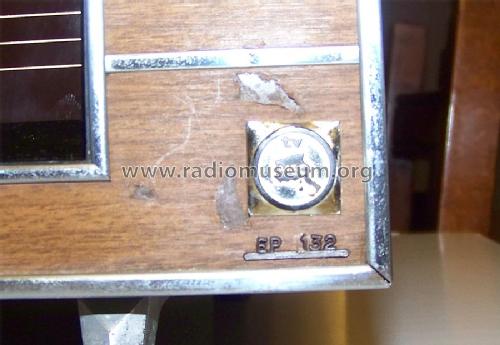

Stereo EP1132 (serie MEC)

Eterphon; Torino

  • Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 275776

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 471/10700 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo EP1132 - Eterphon; Torino
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 565 x 325 x 375 mm / 22.2 x 12.8 x 14.8 inch
  • Notes
  • Görler FM-frontend. Stereophonic af amplifier.
    OC/SW: spreaded 31 m and 49 m band.
    Stereo record player, 16, 33, 45 and 78 rpm.

    See also the similar model Raymond RG2122

  • Author
  • Model page created by Fabio Fantazzini. See "Data change" for further contributors.
