For model 133, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
Eumig 133

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1932–1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: E455 E442 C443 506
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

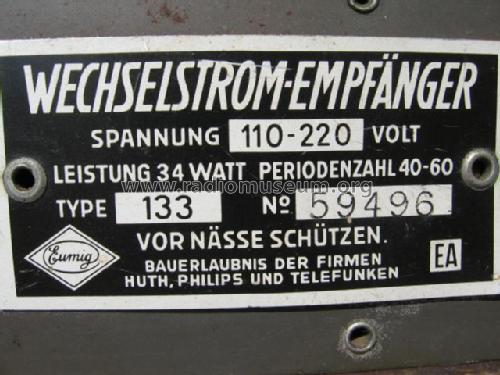

Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 133 - Eumig, Elektrizitäts und

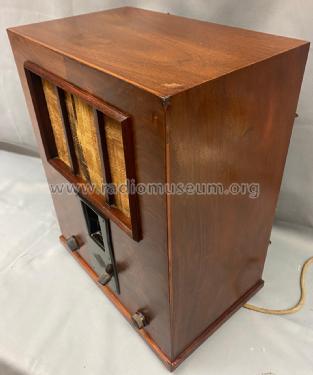

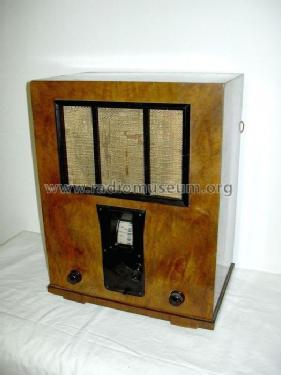

Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 335 x 425 x 215 mm / 13.2 x 16.7 x 8.5 inch
Notes (NVS4, NSS4, NU4, NVS4, NSS4, M43, GL4/1)
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Price in first year of sale 276.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
