- Country
- Austria
- Manufacturer / Brand
- Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8360

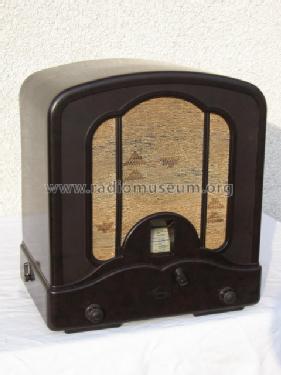

Eumig Type 363

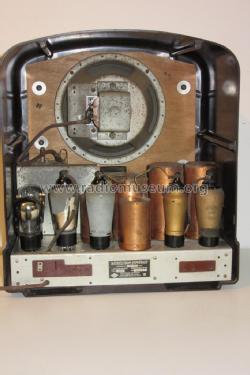

Eumig 363 (Innenansicht)

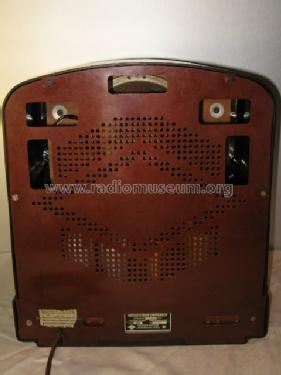

Eumig 363 (Rückansicht)
Eumig 363 (Innenansicht)
Eumig Type 363
Eumig Type 363
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 363 [Baujahr 1933] - Eumig, Elektrizitäts und
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 393 x 430 x 242 mm / 15.5 x 16.9 x 9.5 inch
- Notes
-
Export Schweiz (C443 statt E453)
Die Bezeichnung Eumig 363 wurde 1953 wieder verwendet.
Beide Modelle haben, außer der Nummer, keine Gemeinsamkeiten.
- Net weight (2.2 lb = 1 kg)
- 12.8 kg / 28 lb 3.1 oz (28.194 lb)
- Price in first year of sale
- 436.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
