533; Eumig, Elektrizitäts (ID = 408985) Radio
Eumig, Elektrizitäts: 533 [Radio] ID = 408985 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model 533, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
Eumig 533

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: E446 E447 E453_B5+1 506
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 533 - Eumig, Elektrizitäts und
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Export CH, (Sch=Thali)
Price in first year of sale 370.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

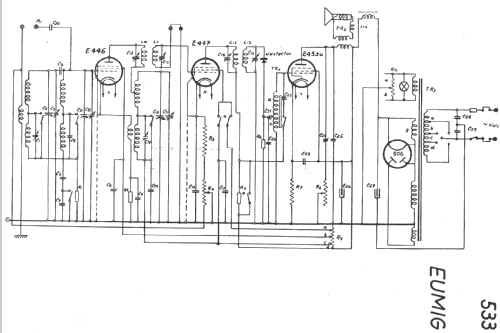

Circuit diagram reference Lange + Schenk
