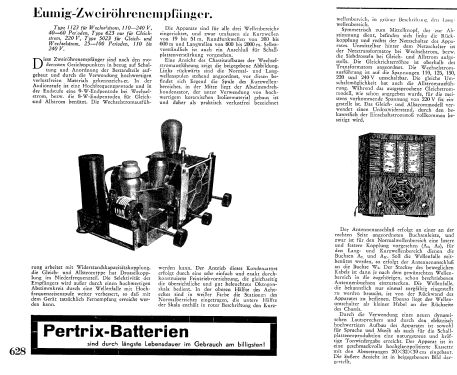

623; Eumig, Elektrizitäts (ID = 2274246) Radio
623; Eumig, Elektrizitäts (ID = 124459) Radio 623; Eumig, Elektrizitäts (ID = 124462) Radio
623; Eumig, Elektrizitäts (ID = 124460) Radio 623; Eumig, Elektrizitäts (ID = 79001) Radio
623; Eumig, Elektrizitäts (ID = 299693) Radio 623; Eumig, Elektrizitäts (ID = 299694) Radio
623; Eumig, Elektrizitäts (ID = 299696) Radio 623; Eumig, Elektrizitäts (ID = 302648) Radio
Use red slider bar for more.
623; Eumig, Elektrizitäts (ID = 124459) Radio
Eumig, Elektrizitäts: 623 [Radio] ID = 124459 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model 623, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
Eumig 623

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: CF1 CL2
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 623 - Eumig, Elektrizitäts und
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
