Hartley IV 2475; Eumig, Elektrizitäts (ID = 393196) Radio

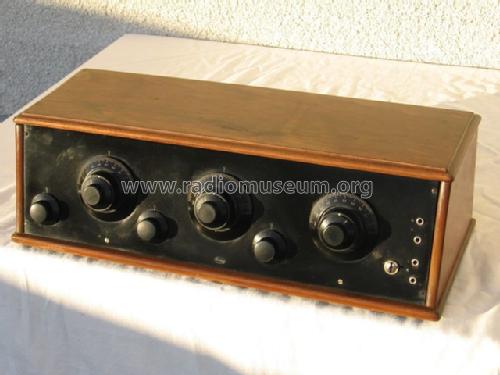

Eumig, Elektrizitäts: Hartley IV 2475 [Radio] ID = 393196 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hartley IV 2475, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
Eumig Hartley IV 2475

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1926–1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: A415 A415 A415 B405
Conflicting model year with tube data.
The model date contradicts tube dates. [ A415 (1927) B405 (1927)]
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Hartley IV 2475 - Eumig, Elektrizitäts und
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 530 x 160 x 210 mm / 20.9 x 6.3 x 8.3 inch
Notes Variok.; Mod. mit nur MW. Alternativ zur Röhre B405 kann eine B443 verwendet werden
Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
Price in first year of sale 320.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in Der Radio-Empfangs-Apparat, Band 3 (189)
