LS IV 7475

LS IV 7475; Eumig, Elektrizitäts (ID = 53390) Radio
LS IV 7475; Eumig, Elektrizitäts (ID = 73291) Radio LS IV 7475; Eumig, Elektrizitäts (ID = 364602) Radio

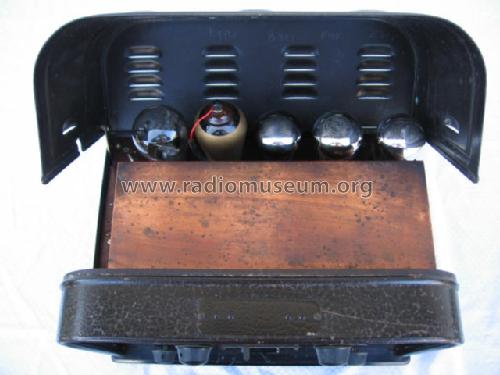

LS IV 7475; Eumig, Elektrizitäts (ID = 364603) Radio LS IV 7475; Eumig, Elektrizitäts (ID = 364601) Radio
LS IV 7475; Eumig, Elektrizitäts (ID = 364604) Radio LS IV 7475; Eumig, Elektrizitäts (ID = 821214) Radio
Use red slider bar for more.
LS IV 7475; Eumig, Elektrizitäts (ID = 73291) Radio
Eumig, Elektrizitäts: LS IV 7475 [Radio] ID = 73291 600x487
Select picture or schematic to display from thumbnails on the right and click for download.
For model LS IV 7475, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
Eumig Type 7475 LS IV

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E442 E438 E438 C443 506
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: LS IV 7475 - Eumig, Elektrizitäts und
Notes Andere Röhrenbestückung siehe Schaltplan. Für Magn.- oder Dyn-LS (Mod. 9475?-wäre gleich)
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 496.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
