Magnettonprojektor Mark-S

Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256143) R-Player

Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256144) R-Player

Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256145) R-Player

Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256146) R-Player

Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256153) R-Player
Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256025) R-Player Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256026) R-Player
Use red slider bar for more.
Magnettonprojektor Mark-S; Eumig, Elektrizitäts (ID = 1256025) R-Player

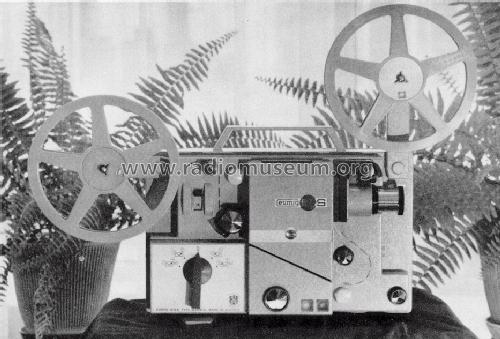

Eumig, Elektrizitäts: Magnettonprojektor Mark-S [R-Player] ID = 1256025 933x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnettonprojektor Mark-S, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
© Eumig Lupe 4, April 1965 S.1 ff

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1965 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: EF86 ECH81 ECL86
Semiconductors (the count is only for transistors) BAY18 RL32 unknown_diode B250C75
Main principle Audio-Amplification
Wave bands - without
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Magnettonprojektor Mark-S - Eumig, Elektrizitäts und
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 320 x 200 x 147 mm / 12.6 x 7.9 x 5.8 inch
Notes Eumig 8 mm Magnettonprojektor Mark-S;
Für 50 & 60 Hz Betrieb. 16 & 24 B/sec. Aufnahme und Wiedergabeverstärker für 45 - 10.000 Hz. HF Vormagnetisierung. Anschlüsse für Mikro, Phono & ext. Lautsprecher.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 5'997.00 öS
Mentioned in - - Manufacturers Literature (Eumig Lupe 4, April 1965 S.1 ff)
