• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1972/1973 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 333380

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC583 BC583 2SC735 TAA310 LA4031 1N914 1N914 BY164

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 220; 230; 240; 250 Volt

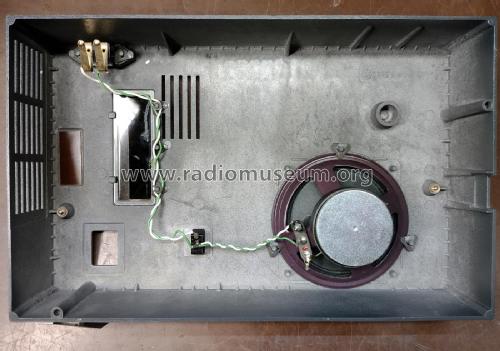

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.6 cm = 4.2 inch

• Power out
• 6 W (max.)

• Material
• Metal case

• from Radiomuseum.org

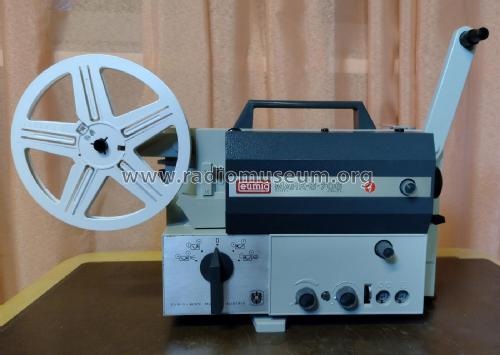

• Model: Super 8 and Single 8 Sound Film Projector MARK S 706 - Eumig, Elektrizitäts und

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 240 x 170 mm / 13 x 9.4 x 6.7 inch

• Notes

• Super 8 sound film projector
  Lens: Eumig Vario-Eupronet f: 1.6 F: 17-30 mm
  Lamp: 75 W, 12 V.

  Projection: forward, backward
  Projection speed: 18 fps, frequency response: 80 - 8000 Hz
  Projection speed: 24 fps, frequency response: 75 - 10000 Hz
  Movie download: Automatic movie download
  Audio: Magnetic playback on an audio track
  Sound mode: Mono
  Amplifier output: music power 6 W
  Built-in speaker: Z = 4 Ω
  External speaker (4 - 8 Ω, 2 - 6 W)
  Recording: magnetic recording on a soundtrack, sound aloud
  -recording level adjustment: automatic
  Microphone: (0.3 - 10 mV, 4 kΩ)
  phono: (0.3 mV - 2 V, 4 kΩ - 1 MΩ)
  Input connections: DIN
  Line output: Nominal 100 kΩ, 450 mV

  Diodes: 3 x 1N914, 4 x BY164

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 5,000.00 ATS
