• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 250802

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC238 BC238 2SC735 TAA310 LA4031

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Special Tape or Cassette-Format

• Power type and voltage
• Alternating Current supply (AC) / 220; 230; 240; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.6 cm = 4.2 inch

• Material
• Metal case

• from Radiomuseum.org

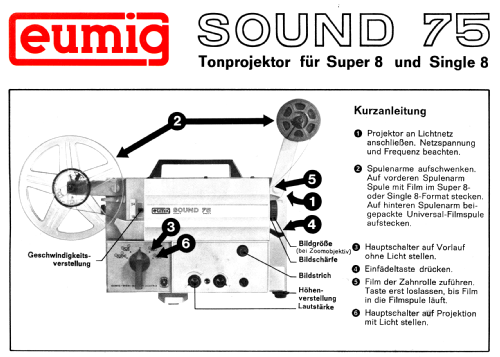

• Model: Tonfilmprojektor für Super 8 und Single 8 Sound 75 - Eumig, Elektrizitäts und

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 210 x 170 mm / 12.6 x 8.3 x 6.7 inch

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Mentioned in

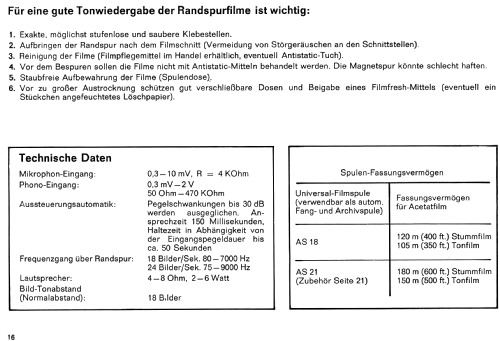

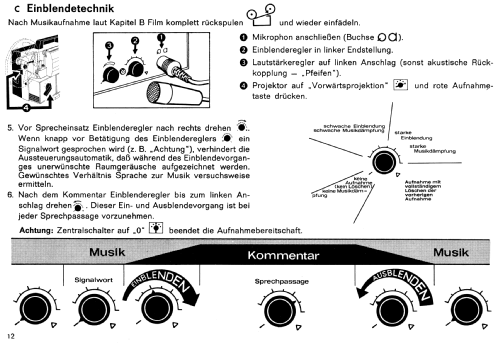

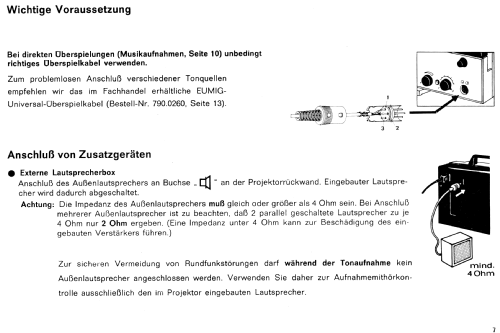

• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
