Prüfgerät für Transistoren und Halbleiterdioden Instrument extern

Euratele, Radio-Fernlehrinstitut GmbH; Köln

  • Year
  • 1965 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 79991

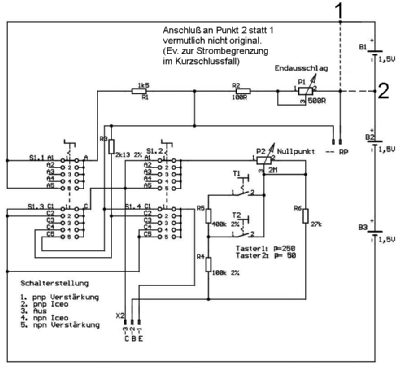

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries / 4,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Prüfgerät für Transistoren und Halbleiterdioden [Instrument extern] - Euratele, Radio-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 123 x 97 x 77 mm / 4.8 x 3.8 x 3 inch
  • Notes
  • Kunststoffgehäuse mit Alu-Frontplatte
  • Net weight (2.2 lb = 1 kg)
  • 0.440 kg / 0 lb 15.5 oz (0.969 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Klaus Ortwein. See "Data change" for further contributors.
