• Country
• Italy

• Manufacturer / Brand
• Europhon; Milano

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160408

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• SFT358 SFT357 SFT316 SFT316 SFT316 SFT337 SFT353 SFT377 SFT377 SFT367

• Main principle
• Superheterodyne (common); ZF/IF 480 10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Wooden case

• from Radiomuseum.org

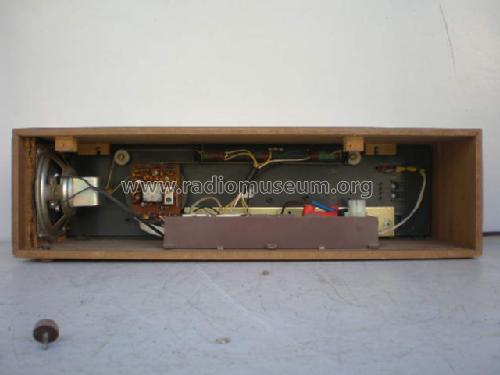

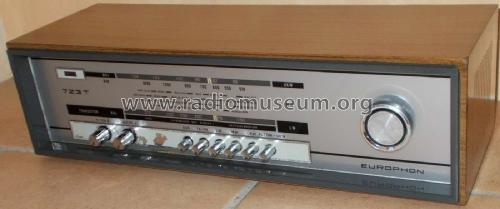

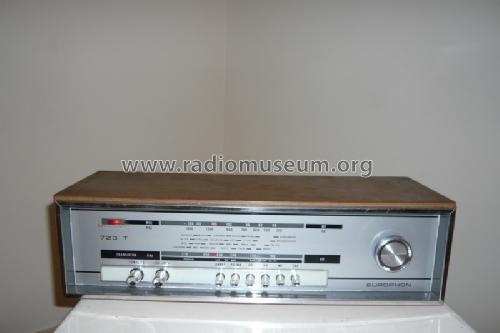

• Model: 723T [Type 2] - Europhon; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 450 x 130 x 160 mm / 17.7 x 5.1 x 6.3 inch

• Notes
• Prese per microfono, registratore, altoparlante suppl. Il passaggio dall'alimentazione a rete a quella a batterie avviene automaticamente scollegando la spina dalla presa di corrente e inserendola in una presa sul dietro del mobile: in questo modo si chiude un contatto che inserisce le pile.

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
