AZ101

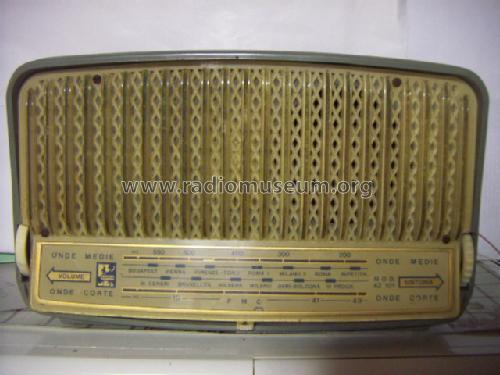

AZ101; Europhon; Milano (ID = 2121313) Radio AZ101; Europhon; Milano (ID = 920359) Radio
AZ101; Europhon; Milano (ID = 1097847) Radio AZ101; Europhon; Milano (ID = 1097849) Radio
Use red slider bar for more.
AZ101; Europhon; Milano (ID = 2121313) Radio
Europhon; Milano: AZ101 [Radio] ID = 2121313 1345x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model AZ101, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BA6 6BE6 6AT6 50B5 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: AZ101 - Europhon; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 240 x 140 x 100 mm / 9.4 x 5.5 x 3.9 inch

Model page created by Alessandro Arrigoni. See "Data change" for further contributors.



All listed radios etc. from Europhon; Milano
Here you find 145 models, 111 with images and 46 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
