FM1000

FM1000; Europhon; Milano (ID = 2203266) Radio FM1000; Europhon; Milano (ID = 2203267) Radio

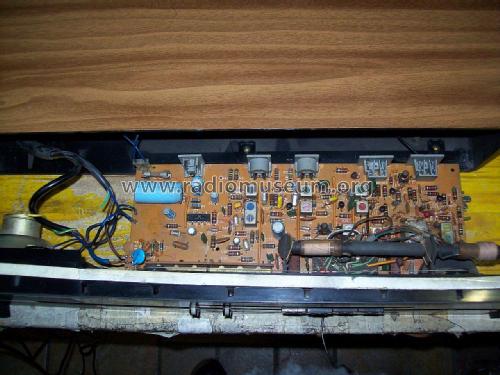

FM1000; Europhon; Milano (ID = 2203268) Radio
Use red slider bar for more.

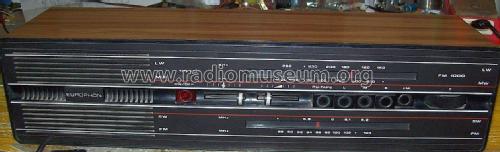

FM1000; Europhon; Milano (ID = 2203266) Radio
Europhon; Milano: FM1000 [Radio] ID = 2203266 1257x383
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM1000, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. TBA820
Main principle Superheterodyne (common); ZF/IF ?/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FM1000 - Europhon; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 115 x 140 mm / 18.9 x 4.5 x 5.5 inch
Notes

Stadio finale audio con TBA820

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

Model page created by Giuseppe Feniello. See "Data change" for further contributors.
