Fonomaster 260

Fonomaster 260; Europhon; Milano (ID = 1653993) Radio Fonomaster 260; Europhon; Milano (ID = 1653990) Radio
Fonomaster 260; Europhon; Milano (ID = 1653992) Radio Fonomaster 260; Europhon; Milano (ID = 1653994) Radio
Fonomaster 260; Europhon; Milano (ID = 1653996) Radio Fonomaster 260; Europhon; Milano (ID = 1653997) Radio
Fonomaster 260; Europhon; Milano (ID = 1653999) Radio
Use red slider bar for more.

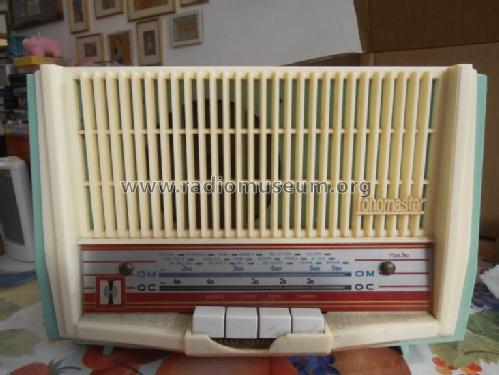

Fonomaster 260; Europhon; Milano (ID = 1653993) Radio
Europhon; Milano: Fonomaster 260 [Radio] ID = 1653993 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fonomaster 260, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AT6 35A3 50B5
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.8 W (undistorted)
from Radiomuseum.org Model: Fonomaster 260 - Europhon; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 165 x 120 mm / 9.8 x 6.5 x 4.7 inch
Notes

Colore verde-avorio.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
