Kosmophon RM 52

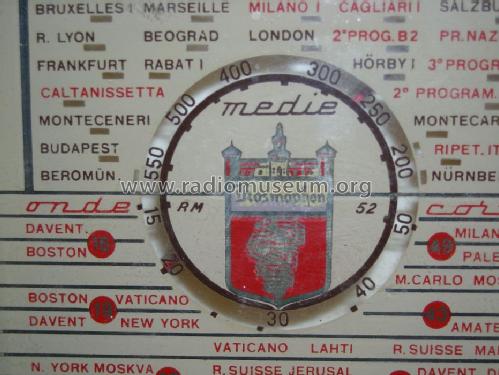

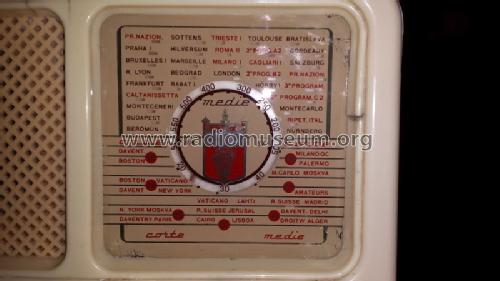

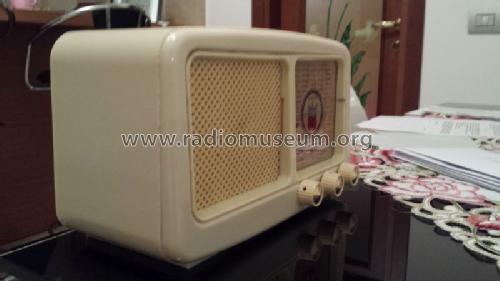

Kosmophon RM 52; Europhon; Milano (ID = 2357512) Radio
Kosmophon RM 52; Europhon; Milano (ID = 1440585) Radio Kosmophon RM 52; Europhon; Milano (ID = 1352602) Radio
Kosmophon RM 52; Europhon; Milano (ID = 1352603) Radio Kosmophon RM 52; Europhon; Milano (ID = 1440589) Radio
Kosmophon RM 52; Europhon; Milano (ID = 1440591) Radio Kosmophon RM 52; Europhon; Milano (ID = 1613246) Radio
Kosmophon RM 52; Europhon; Milano (ID = 1613247) Radio Kosmophon RM 52; Europhon; Milano (ID = 1613248) Radio
Kosmophon RM 52; Europhon; Milano (ID = 1613249) Radio Kosmophon RM 52; Europhon; Milano (ID = 1653861) Radio
Use red slider bar for more.
Kosmophon RM 52; Europhon; Milano (ID = 1440585) Radio
Europhon; Milano: Kosmophon RM 52 [Radio] ID = 1440585 933x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kosmophon RM 52, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AT6 50B5 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Kosmophon RM 52 - Europhon; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 245 x 145 x 105 mm / 9.6 x 5.7 x 4.1 inch

Model page created by Alessandro Arrigoni. See "Data change" for further contributors.



All listed radios etc. from Europhon; Milano
Here you find 145 models, 111 with images and 46 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
