Micro Component Pre Main Amplifier TA-88 D-828/01

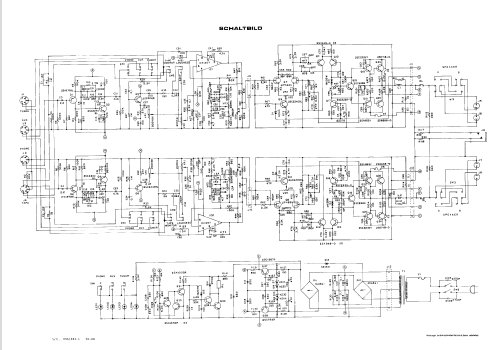

Micro Component Pre Main Amplifier TA-88 D-828/01; Europhon; Milano (ID = 1298320) Ampl/Mixer

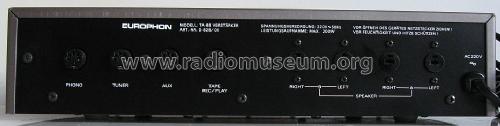

Micro Component Pre Main Amplifier TA-88 D-828/01; Europhon; Milano (ID = 1299073) Ampl/Mixer Micro Component Pre Main Amplifier TA-88 D-828/01; Europhon; Milano (ID = 1299075) Ampl/Mixer
Use red slider bar for more.

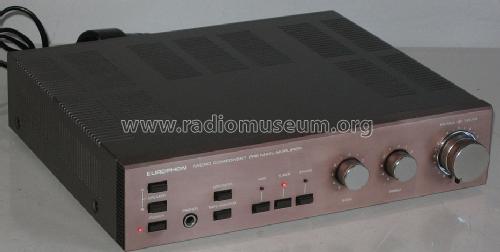

Micro Component Pre Main Amplifier TA-88 D-828/01; Europhon; Milano (ID = 1299073) Ampl/Mixer
Europhon; Milano: Micro Component Pre Main Amplifier TA-88 D-828/01 [Ampl/Mixer] ID = 1299073 933x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micro Component Pre Main Amplifier TA-88 D-828/01, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1985 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 35:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (180 W max.)
from Radiomuseum.org Model: Micro Component Pre Main Amplifier TA-88 D-828/01 - Europhon; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 298 x 70 x 249 mm / 11.7 x 2.8 x 9.8 inch
Notes

Europhon TA-88 Verstärker, D-828/01 Micro Component Pre Main Amplifier;
bass & treble control, DIN terminals, for two speaker pairs, max. 200 W power consumption.

Stereoverstärker. Frequenzbereich (-3dB) 20 Hz - 60000Hz, Leistungsbandbreite 20Hz - 40000Hz, Klirrfaktor 0,1%.Übersprechdämpfung 50dB. 35 Transistoren, 2 ICs. LS Ausgang 4 Ohm

Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
