Radioorologio H10
Europhon; Milano
- Country
- Italy
- Manufacturer / Brand
- Europhon; Milano
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122857
orologio e frontale

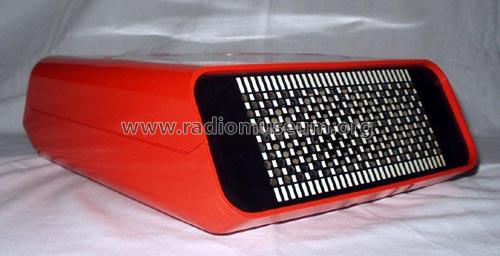

Vista lato radio e scalanumerica
Vista dell'interno
The Europhon H10 mounted on a wall.
Collezione personale
Collezione personale
Collezione personale
Collezione personale
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 × 4,5 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radioorologio H10 - Europhon; Milano
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 230 x 90 x 310 mm / 9.1 x 3.5 x 12.2 inch
- Notes
-
Radio da appoggio su tavolo o anche da appendere al muro dotata di vistoso orologio con bilanciere elettromeccanico. Prodotta in vari colori. La radio funziona con 2 batterie piatte da 4,5 V, l'orologio con una batteria "C" da 1,5V. Disegno di Adriano Rampoldi.
Vedi anche Europhon H20, Europhon H30, Bush 538A e Universum WTR5535U.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
