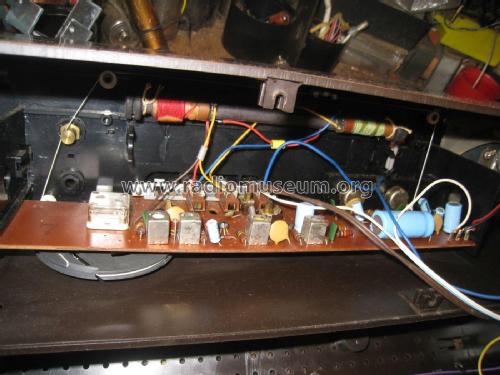

RC74; Europhon; Milano (ID = 2080361) Radio
Use red slider bar for more.
RC74; Europhon; Milano (ID = 2080353) Radio
Europhon; Milano: RC74 [Radio] ID = 2080353 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model RC74, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 220/(6 x 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: RC74 - Europhon; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 95 x 112 mm / 17.3 x 3.7 x 4.4 inch
Notes

EUROPHON mod. RC 74 - Radio OM/OL - controllo volume/tono separati - pulsantiera Arret/OL/OM - frequency range: OM: 545/1600 KHz - OL: 145/250 KHz.

Made in Italy.

Net weight (2.2 lb = 1 kg) 1.650 kg / 3 lb 10.1 oz (3.634 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
