RC-58

RC-58; Europhon; Milano (ID = 2038646) Radio RC-58; Europhon; Milano (ID = 2038647) Radio
RC-58; Europhon; Milano (ID = 1275554) Radio RC-58; Europhon; Milano (ID = 1495930) Radio
RC-58; Europhon; Milano (ID = 1495931) Radio RC-58; Europhon; Milano (ID = 1495932) Radio
RC-58; Europhon; Milano (ID = 1495933) Radio RC-58; Europhon; Milano (ID = 1495934) Radio
Use red slider bar for more.

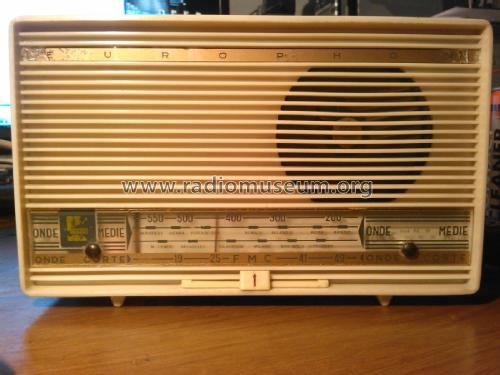

RC-58; Europhon; Milano (ID = 2038646) Radio
Europhon; Milano: RC-58 [Radio] ID = 2038646 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model RC-58, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6BE6 6BA6 6AT6 6AQ5
Main principle Superheterodyne (common); none
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: RC-58 - Europhon; Milano
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 155 x 130 mm / 9.8 x 6.1 x 5.1 inch
Notes Induktive (permeabilitäts-) Abstimmung. Netzteil mit Selengleichrichter. Nur 110 V Anodenspannung.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Price in first year of sale 150.00 SEK
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Torbjörn Forsman. See "Data change" for further contributors.
