• Year
  • 1959/1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 71998

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands

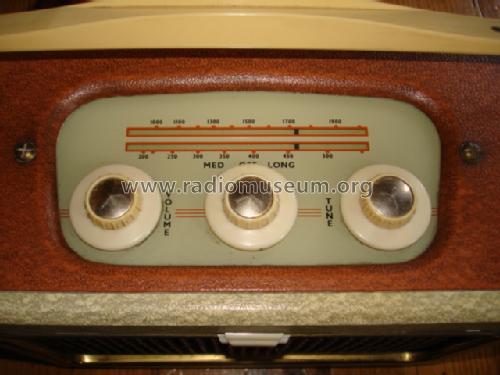

  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 90/1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

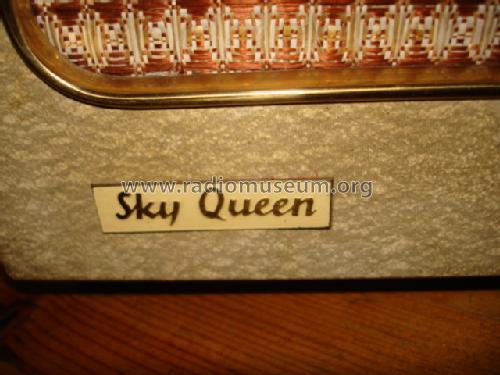

  • Model: Sky Queen II - Ever Ready Co. GB Ltd.; London
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 315 x 245 x 158 mm / 12.4 x 9.6 x 6.2 inch
  • Notes
  • Uses Ever Ready B136 Combined HT/LT 90/1.5 volt battery.

    There were three models with  "Sky Queen"  in the name, which are all different:

    1. 1953 "Sky Queen" (DK96, DF96, DAF96, DL96).
    2. 1959 "Sky Queen II" (this Model), not listed on Trader but in 1959-1960 R&TVS
    3. 1964 "Sky Queen III" using 7 transistors.

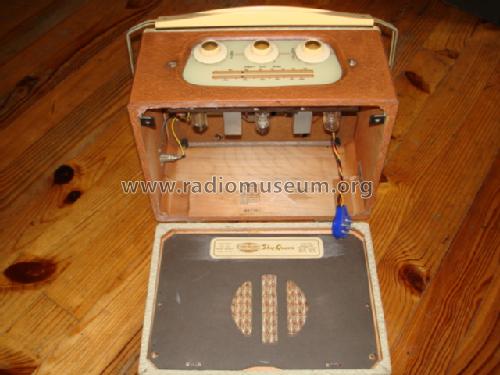

    The original Sky Queen is basically the same chassis with variations in All Dry Portable K (two main versions), All Dry Transportable Model T (3 main versions), Sky Prince, Sky King and Sky Lord. This model uses a PCB instead of point to point wiring, though basically the same circuit and similar size to original Sky Queen. An unusal feature is the use of two "Single In Line" coated modules, Module A is for the audio stages with 11 componets and Module B on the DK96 Mixer/Osc with 4 components. The parts appear to be all tubular and lack of leakage as well as size/value suggests the capacitors are ceramic.

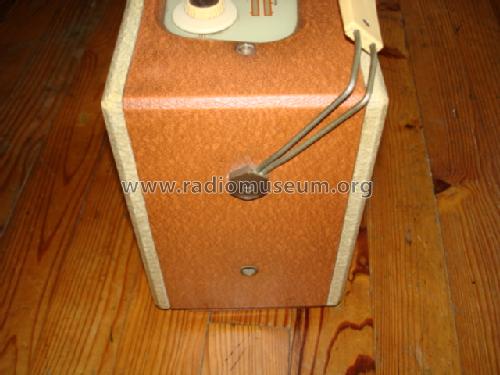

    There is a socket for a Car Aerial.



  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
  • External source of data
  • Ever Ready Radio Servicing.

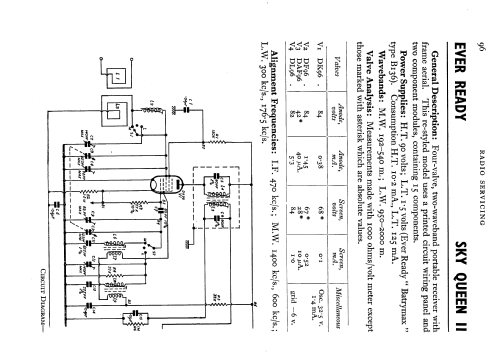

  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Mentioned in
  • 1959-1960 Edition.
  • Author
  • Model page created by Keith Watt. See "Data change" for further contributors.
