486 Layerbilt (Super Layerbilt) "B" Battery

486 Layerbilt ; Eveready Ever Ready, (ID = 1019060) Power-S 486 Layerbilt ; Eveready Ever Ready, (ID = 205989) Power-S
486 Layerbilt ; Eveready Ever Ready, (ID = 614443) Power-S 486 Layerbilt ; Eveready Ever Ready, (ID = 742919) Power-S
486 Layerbilt ; Eveready Ever Ready, (ID = 742920) Power-S 486 Layerbilt ; Eveready Ever Ready, (ID = 1239793) Power-S
486 Layerbilt ; Eveready Ever Ready, (ID = 1727549) Power-S 486 Layerbilt ; Eveready Ever Ready, (ID = 1732975) Power-S
486 Layerbilt ; Eveready Ever Ready, (ID = 1735278) Power-S 486 Layerbilt ; Eveready Ever Ready, (ID = 1958515) Power-S
Use red slider bar for more.
486 Layerbilt ; Eveready Ever Ready, (ID = 1019060) Power-S
Eveready Ever Ready,: 486 Layerbilt [Power-S] ID = 1019060 500x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model 486 Layerbilt (Super Layerbilt) 'B' Battery, Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia:

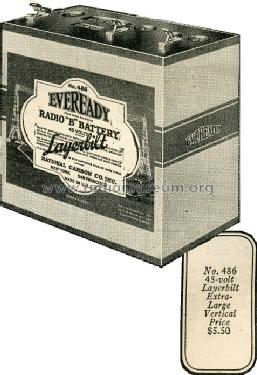

Radio Broadcast, Dec. 1926, Page 193

Country:  United States of America (USA)
Manufacturer / Brand:  Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia
Year: 1925 ? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 45 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: 486 Layerbilt ["B" Battery] - Eveready Ever Ready, AENMC /
Dimensions (WHD) 8 x 8 x 4.3 inch / 203 x 203 x 109 mm
Notes

Large size.

45 Volt with additional tap.



Price in first year of sale 2.00 $
Mentioned in Radio Broadcast, Nov. 1925, p. 71
Literature/Schematics (1) 1938 Radolek Catalog
Literature/Schematics (2) The Radio Amateur`s Handbook

Model page created by Vitor Oliveira. See "Data change" for further contributors.
