Eveready Ever Ready,: 738 NEDA 205 [Power-S] ID = 1610205 933x1216

Select picture or schematic to display from thumbnails on the right and click for download.

For model 738 NEDA 205 Socket not Terminals, Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia:

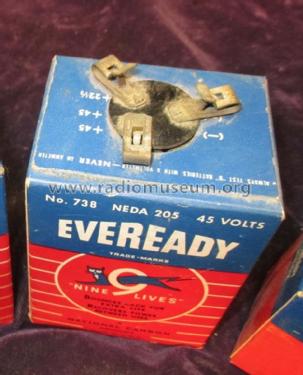

Front: edited from ebay belvedere_171093794322

Country:

United States of America (USA)

Manufacturer / Brand:

Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia

Year: 1940 ??

Category: Power supply/conditioner or battery or charger

Wave bands	- without
Details
Power type and voltage	Is a battery or storage battery / 22.5 & 45 Volt
Loudspeaker	- - No sound reproduction output.
Power out
from Radiomuseum.org	Model: 738 NEDA 205 [Socket not Terminals] - Eveready Ever Ready, AENMC /
Dimensions (WHD)	3 x 4.125 x 2.313 inch / 76 x 105 x 59 mm
Notes	The same part number used before WII, see Early 738 with terminals. This has a 5 way type "7" Eveready socket with 22.5V centre tap. Contains 30 x "AA" cells, not layer type. Currently sold (2014) equivalent is Rayovac 45HD.
Net weight (2.2 lb = 1 kg)	1 lb 4 oz (1.25 lb) / 0.568 kg

Model page created by Michael Watterson. See "Data change" for further contributors.
