"C" Battery 771

'C' Battery 771; Eveready Ever Ready, (ID = 476312) Power-S 'C' Battery 771; Eveready Ever Ready, (ID = 205978) Power-S
'C' Battery 771; Eveready Ever Ready, (ID = 498475) Power-S 'C' Battery 771; Eveready Ever Ready, (ID = 555212) Power-S
'C' Battery 771; Eveready Ever Ready, (ID = 614425) Power-S 'C' Battery 771; Eveready Ever Ready, (ID = 614426) Power-S
'C' Battery 771; Eveready Ever Ready, (ID = 614427) Power-S 'C' Battery 771; Eveready Ever Ready, (ID = 614428) Power-S
'C' Battery 771; Eveready Ever Ready, (ID = 614429) Power-S 'C' Battery 771; Eveready Ever Ready, (ID = 1254158) Power-S
Use red slider bar for more.
'C' Battery 771; Eveready Ever Ready, (ID = 476312) Power-S

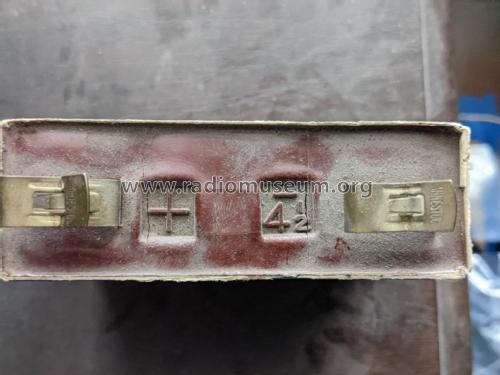

Eveready Ever Ready,: "C" Battery 771 [Power-S] ID = 476312 637x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 'C' Battery 771, Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia

Country:  United States of America (USA)
Manufacturer / Brand:  Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia
Year: 1924 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 4.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: "C" Battery 771 - Eveready Ever Ready, AENMC /
Dimensions (WHD) 4 x 3 x 1.3 inch / 102 x 76 x 33 mm
Notes Eveready #771, 4.5V Negative Grid Bias or "C" Battery.
With 3 Clip terminals, giving 1.5; 3 or 4.5 Volt.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 1.00 $
Mentioned in 1924, Radiola III-A, Handbook
Literature/Schematics (1) 1938 Radolek Catalog
Literature/Schematics (2) Radio Broadcast, Nov. 1923, p. 89

Model page created by Vitor Oliveira. See "Data change" for further contributors.



All listed radios etc. from Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia
Here you find 149 models, 125 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
