Mini-Max B battery 467

Mini-Max B battery 467; Eveready Ever Ready, (ID = 1357871) Power-S Mini-Max B battery 467; Eveready Ever Ready, (ID = 1496337) Power-S
Use red slider bar for more.

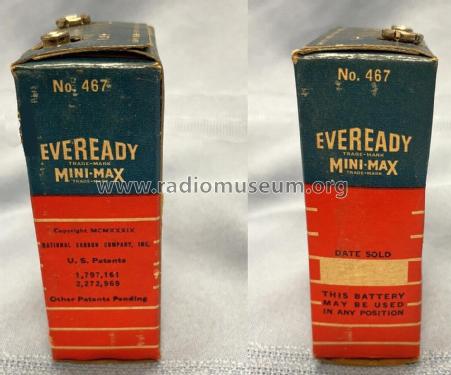

Mini-Max B battery 467; Eveready Ever Ready, (ID = 1357871) Power-S
Eveready Ever Ready,: Mini-Max B battery 467 [Power-S] ID = 1357871 301x214
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini-Max B battery 467, Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia:
Annonce Life Magazine 1946

Country:  United States of America (USA)
Manufacturer / Brand:  Eveready (Ever Ready), AENMC / National Carbon Company (NCC); Columbia
Year: 1940 ? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 67,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Mini-Max B battery 467 - Eveready Ever Ready, AENMC /
Dimensions (WHD) 71 x 94 x 35 mm / 2.8 x 3.7 x 1.4 inch
Notes

Connector type: "S" (Snap like PP9)

45 off Layer type cell (stacked "biscuits") F40 size, slightly larger than F22 (about 24 x 6.7 x 16mm each).

Size is typical. One Eveready catalogue quotes a maximum size probably including snaps of 71 x 94 x 35 mm. A replica should aim for 67 x 92 x 35 mm

Battery packs tend to expand with age. Catalogues may specify a typical current production size or a maximum for set makers (who must intellegently allow for tolerances of their case/compartment and ease of fitting).

The 9 Lives 467 is the same pack from Eveready, probably branding in different periods of time.

Equivalents

About 460mAH capacity, or more than 50 hours in a "personal" tube radio.

Used in "Personal" radios with one "D" cell for HT, or larger sets with a larger LT arrangement and also instruments.

A replica can take 45 x AAAA cells from 7 & 1/2 Alkaline PP3 type packs, about 580mAH, only 7 complete Alkaline PP3 (6LR61) fit, but it's possible to fit 8 Layer type 6F22.

Model page created by Adalbert Gebhart. See "Data change" for further contributors.
