Mini-Max 467

Mini-Max 467; Ever-Ready/Eveready (ID = 2525864) Power-S Mini-Max 467; Ever-Ready/Eveready (ID = 2525868) Power-S
Mini-Max 467; Ever-Ready/Eveready (ID = 2431418) Power-S
Use red slider bar for more.
Mini-Max 467; Ever-Ready/Eveready (ID = 2525864) Power-S
Ever-Ready/Eveready: Mini-Max 467 [Power-S] ID = 2525864 1400x1766
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini-Max 467, Ever-Ready/Eveready (Brand in Australia - 1901 - 1985); Sydney:
Eveready 467 Battery.

Country:  Australia
Manufacturer / Brand:  Ever-Ready/Eveready (Brand in Australia - 1901 - 1985); Sydney
Year: 1946–1980 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 67.5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Mini-Max 467 - Ever-Ready/Eveready Brand in
Material Various materials
Dimensions (WHD) 1.375 x 2.8125 x 3.7 inch / 35 x 71 x 94 mm
Notes

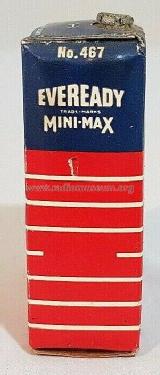

MINI-MAX "B" Battery
Eveready (Australia) Pty. Ltd.

  Model: No. 467 "B" battery for use in in personal portables.
  Selling features: Measures 2¾" long x 1⅜ wide x 2⅔" high, weighs 12 oz., fitted with glove fastener terminals, voltage 67½V, claimed to have longer life than any other type dry cell battery of equal size.
  Retail Price: 16/1.

See also Diamond type 3467.

Net weight (2.2 lb = 1 kg) 0 lb 12 oz (0.75 lb) / 0.341 kg
Mentioned in Radio & Electrical Retailer, Australia (Vol. 23, No. 26 (533rd Issue) 12/9/1946.)

Model page created by Martin Kent. See "Data change" for further contributors.
