AIE-1241

AIE-1241; Aitron; brand /Marke (ID = 1268232) Radio AIE-1241; Aitron; brand /Marke (ID = 1217788) Radio
AIE-1241; Aitron; brand /Marke (ID = 856343) Radio AIE-1241; Aitron; brand /Marke (ID = 1217785) Radio
AIE-1241; Aitron; brand /Marke (ID = 1217789) Radio AIE-1241; Aitron; brand /Marke (ID = 1217790) Radio
AIE-1241; Aitron; brand /Marke (ID = 1217791) Radio AIE-1241; Aitron; brand /Marke (ID = 1217793) Radio
AIE-1241; Aitron; brand /Marke (ID = 1217794) Radio AIE-1241; Aitron; brand /Marke (ID = 1217786) Radio
Use red slider bar for more.

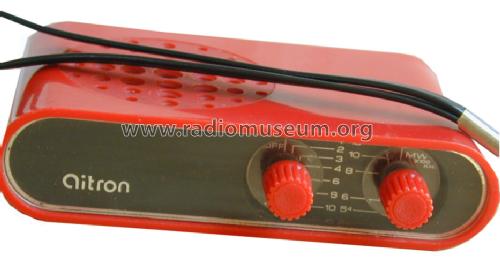

AIE-1241; Aitron; brand /Marke (ID = 1268232) Radio
Aitron; brand /Marke: AIE-1241 [Radio] ID = 1268232 933x443
Select picture or schematic to display from thumbnails on the right and click for download.
For model AIE-1241, Aitron; (brand /Marke)

Country:  Hong Kong
Manufacturer / Brand:  Aitron; (brand /Marke)
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: AIE-1241 - Aitron; brand /Marke
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 4 x 2.5 x 1 inch / 102 x 64 x 25 mm
Notes

Exclusiv AIE-1241, MW Transistor Radio; deutschsprachige Anleitung, Trageschlaufe, verschiedene Farben (z.B. gelb, weiß, rot bekannt). Hergestellt bei Emperor in Hong-Kong.

Net weight (2.2 lb = 1 kg) 0.150 kg / 0 lb 5.3 oz (0.33 lb)

Model page created by a member from A. See "Data change" for further contributors.
