MW/UKW Transistor Radio Artikel Nr. 39/0

MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 1577464) Radio MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 1577465) Radio
MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 1577466) Radio MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 1577468) Radio

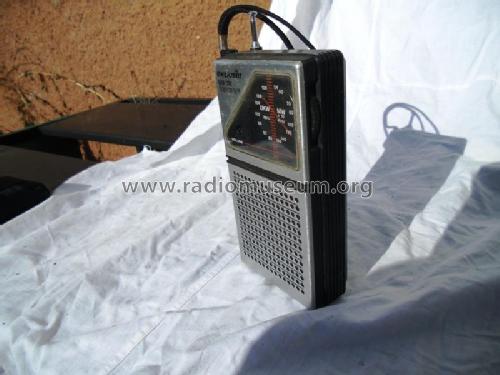

MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 2044651) Radio MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 2044652) Radio
Use red slider bar for more.
MW/UKW Transistor Radio Artikel Nr. 39/0; Exclusiv; Marke (ID = 1577464) Radio
Exclusiv; Marke: MW/UKW Transistor Radio Artikel Nr. 39/0 [Radio] ID = 1577464 511x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW/UKW Transistor Radio Artikel Nr. 39/0, Exclusiv; (Marke)

Country:  Germany
Manufacturer / Brand:  Exclusiv; (Marke)
Year: 1977 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: MW/UKW Transistor Radio Artikel Nr. 39/0 - Exclusiv; Marke
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 150 x 36 mm / 3.1 x 5.9 x 1.4 inch
Net weight (2.2 lb = 1 kg) 0.272 kg / 0 lb 9.6 oz (0.599 lb)
Mentioned in -- Original-techn. papers.

Model page created by Holger Struthoff. See "Data change" for further contributors.



All listed radios etc. from Exclusiv; (Marke)
Here you find 6 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
