2C5 Ch= C5S
Andrea Radio Corp.; Long Island (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Andrea Radio Corp.; Long Island (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39451
-
- Brand: Deresnadyne

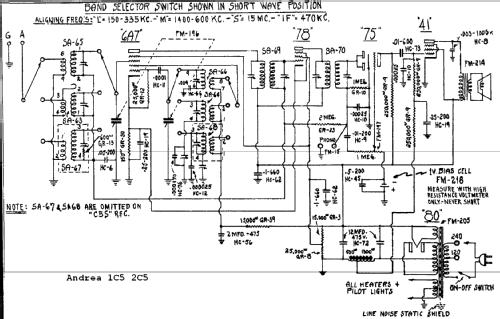

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120;240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 2C5 Ch= C5S - Andrea Radio Corp.; Long
- Notes
- Later models of this series used power transformers with 120; 150; 220 and 250 V taps.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
