360
Use red slider bar for more.

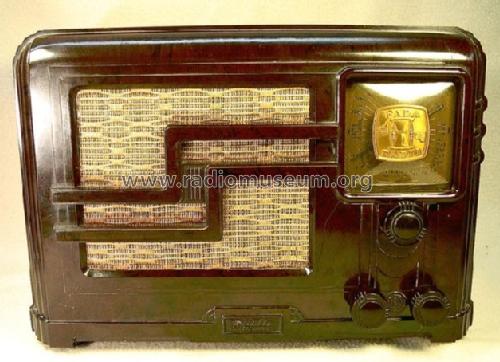

Fada Radio &: 360 [Radio] ID = 912026 627x455
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich | ||||
|---|---|---|---|---|---|
| Year: 1937 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 6D6 6Q7G 25L6G 25Z5 |
| Main principle | Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | AC/DC-set / 115 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 360 - Fada Radio & Electric Co.; |
| Material | Bakelite or Plastics (type unknown) |
| External source of data | Ernst Erb |
| Source of data | The Radio Collector's Directory and Price Guide 1921 - 1965 |
| Circuit diagram reference | Rider's Perpetual, Volume 9 = 1938 and before |
