For model 46 Ch= KA, Fada Radio & Electric Co.; Long Island (NY):

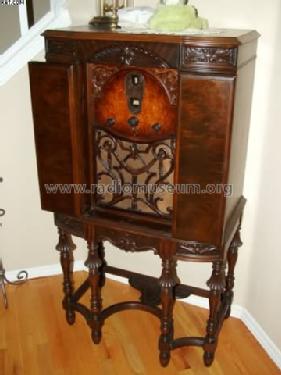

Front view, open

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 24 24 24 27 27 27 45 45 80
Main principle TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 46 Ch= KA - Fada Radio & Electric Co.;
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes Rider's vol 1-20 shows the FADA models 41, 42, 44, 46 and 47 on the same scheamtic. They have a 4 gang variable condenser and bandfilter input and a push-pull audio amplifier. Only the model 47 has also a built-in gramophone. There is one dial (primary tuning control knob) and the (mechanical) Flash-o-graph (Flashograph) switches a separate light when the station is tuned correctly by a mechanism which is shown in this article about early tuning indicators. This model is a Highboy on 6-legged stretcher base. Double doors.
Local / distance switch.
Price in first year of sale 228.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition (Collector's Guide AR6, Slusser)
Literature/Schematics (1) Pre-War Consoles
