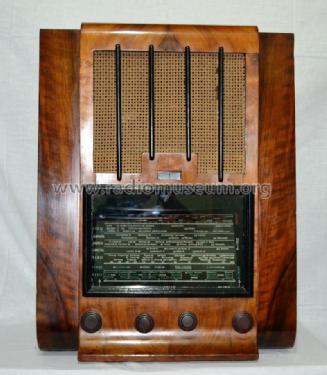

572; Fada Radio - Società (ID = 1743397) Radio 572; Fada Radio - Società (ID = 1534465) Radio

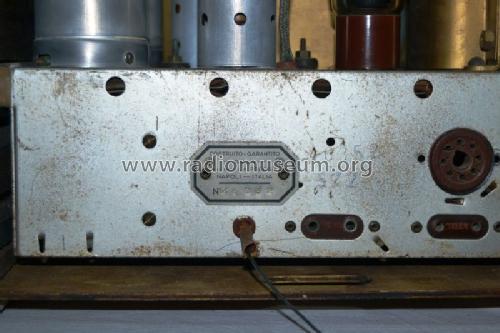

572; Fada Radio - Società (ID = 1534468) Radio 572; Fada Radio - Società (ID = 1534470) Radio
572; Fada Radio - Società (ID = 1534471) Radio 572; Fada Radio - Società (ID = 1534494) Radio
Use red slider bar for more.
572; Fada Radio - Società (ID = 1743397) Radio
Fada Radio - Società: 572 [Radio] ID = 1743397 739x871
Select picture or schematic to display from thumbnails on the right and click for download.
For model 572, Fada Radio - Società meccanica; Napoli

Country:  Italy
Manufacturer / Brand:  Fada Radio - Società meccanica; Napoli
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42A 83-V
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 572 - Fada Radio - Società meccanica
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 420 x 530 x 370 mm / 16.5 x 20.9 x 14.6 inch
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Fada Radio - Società meccanica; Napoli
Here you find 48 models, 26 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
