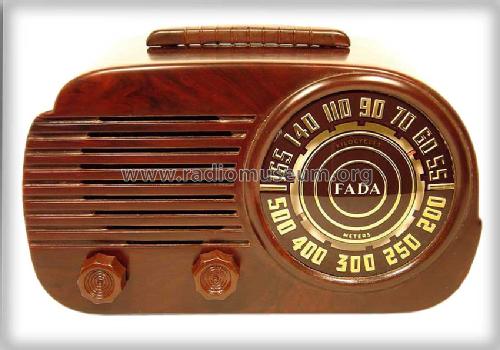

For model 845W "Cloud" Walnut, Fada Radio & Electric Co.; Long Island (NY):
American Radio Design Grer Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1947 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AT6 35B5 35W4
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 = 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2 W (max.)
from Radiomuseum.org Model: 845W "Cloud" [Walnut] - Fada Radio & Electric Co.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10.75 x 6.375 x 5.5 inch / 273 x 162 x 140 mm
Notes

The FADA model family 845 "Cloud" has a tuning range of 530 - 1680 kc (566 to 178 meters). Twin pilot lights for brillant illumination with large illuminated dial. Reduction drive tuning with ratio 11 to 1. P.M speaker with "New wonder speaker alnico V Dynamic" magnet. Built in loop antenna "Fada-Scope". Horizontal Continental Style Plastic Dial and Edge Lighted Pointer. Power consumption is 30 watts with a line surge arrester. Before uploading pictures, please control your set and look also for most similar catalin models 700 Cloud from 1947 and FADA 845 with wrong colors etc. The material of the models 845 is STYRENE plastic (Stein, Plastic Radios, page 95).

The Fada models 845 were available as model 845W in walnut, model 845A in alabaster, model 845AR in alabaster and red, model 845MA in maroon and alabaster and as model 845XA in the version onyx and alabaster. On the same folder are also models 830V in "ivory marble", 830W is walnut (in brown marble), 830A is Alabaster and 830M is color Maroon. The same documentation contains also pictures/data of models 855 which are most equal with models 550 and TVs models PC21 "Selectramatic". Just a notice for the common model years ...

Net weight (2.2 lb = 1 kg) 4.75 lb (4 lb 12 oz) / 2.157 kg
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 12, 1952
Literature/Schematics (2) Classic Plastic Radios of the 1930's and 1940's
