Fake, Fälschung, Nora Budich

Faelschung, fake, falsi, fakes, Fälschung

  • Year
  • 1925 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233588

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Fake, Fälschung, Nora Budich - Faelschung, fake, falsi, fakes
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • Das Gehäuse ist nicht schwarz wie alle NORA Holzgehäuse. Die 5polige Steckspule von Budich gehört niemals zu einem Detektor, sondern eindeutig in eine Neutrodyn-Schaltung. Der Schwenkkoppler hat einen "englischen" Sockel (Stift + Buchse). Die zugehörige Spule wurde adaptiert um zum Sockel zu passen. Die obere schmale Platte ist relativ grob über die originale gesetzt. Das NORA-Schild ist nachträglich angebracht. Das Gehäuse aus (zu ?) dickem Hartholz hat scharfe Ecken und Kanten. NORA rundete hier. NORA verschraubte in den Ecken in eingesetzte Vierkantstücke, nicht in die Gehäusewand.. NORA verwendete keine geschraubten Bananenbuchsen, sondern genietete.
    Offenbar eine sogar in (kleiner) Serie produzierte Fälschung! Evtl aus einem unbekannten Gerät, das aufgebessert wurde mit der oberen Platte, den Spulen und dem Koppler sowie mit einem NORA-Schild.

    English Text:

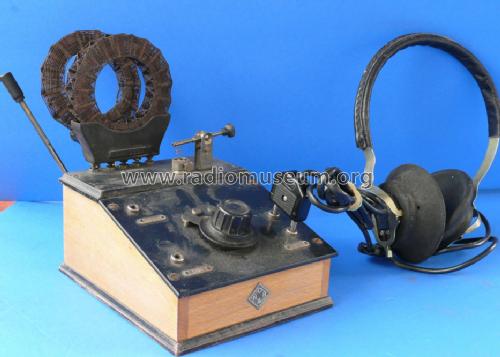

    All NORA wooden cases are painted black, this is not!

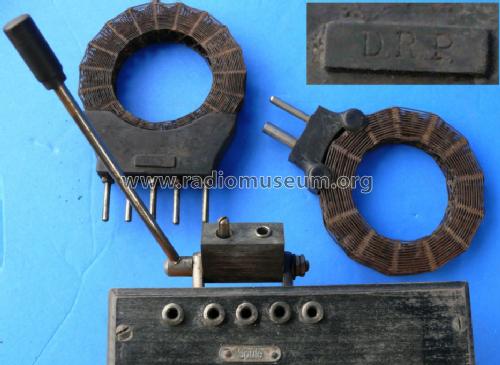

    The 5pin plug-in coil  never belongs to a Crystal set. It is a Neutrodyne RF transformer.
    But the coupler is for an english/american coil with pin+socket. This is very unusual for a Germany Manufacturer, in particular NORA never used such coils. The coil base is modified to fie the socket.
    The top panel is rather coarse and put on top of the original panel. Obviously to hide what was originally forseen, and to mount the Neutrodyne coil.
    The maker of that coil, Budich, never cooperated with NORA. Budich produced Radio Components. NORA fixed the panel in the corners into square corner parts but not into the box walls. NORA used riveted telephone jacks, not screwed ones.

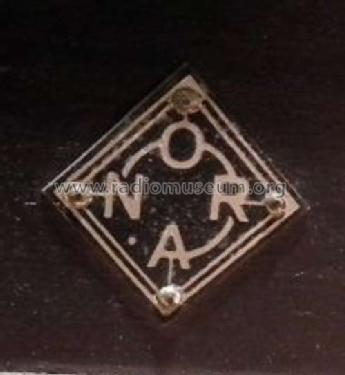

    The case is made from hard wood, rather thick for the pretended time and maker, and the sharp edges and corners are not NORA styleThe NORA Escutcheon was intentionally attached to upgrade the bricolage.
    That is FRAUD, maybe even produced in small series..
    Perhaps made from a "real" set, modified with the upper panel  and the holder to apply the coils plus a NORA escutcheon.
