For model 91-C-4 Ch= 91, Fairbanks, Morse & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Fairbanks, Morse & Co.; Chicago (IL)
alternative name

FMC
Brand
Welco
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7 6J7 6L7 6K7 6E5 6H6 6F6 6L6 5Z4
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 91-C-4 Ch= 91 - Fairbanks, Morse & Co.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 26.5 x 42.5 x 13.125 inch / 673 x 1080 x 333 mm
Notes

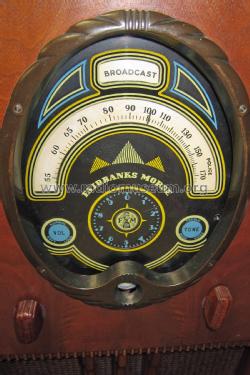

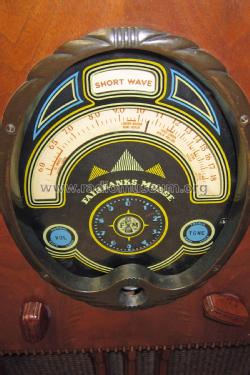

"Semaphore Dial".
4 frequency bands:
- BC,
- Police (up to 5.4 MHz),
- SW (up to 18 MHz),
- Ultra Short Wave.

Net weight (2.2 lb = 1 kg) 35 kg / 77 lb 1.5 oz (77.093 lb)
Price in first year of sale 99.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (3) Fairbanks-Morse Folder RA 309 for 1937
