Preamplifier-Equalizer 245

Preamplifier-Equalizer 245; Fairchild Recording (ID = 641425) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 641426) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 641427) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 641428) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 641429) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 641431) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 2131792) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 2131793) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 2131794) Ampl/Mixer

Preamplifier-Equalizer 245; Fairchild Recording (ID = 2131795) Ampl/Mixer
Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496194) Ampl/Mixer Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496195) Ampl/Mixer
Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496198) Ampl/Mixer Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496199) Ampl/Mixer
Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496201) Ampl/Mixer Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496202) Ampl/Mixer
Use red slider bar for more.
Preamplifier-Equalizer 245; Fairchild Recording (ID = 1496194) Ampl/Mixer
Fairchild Recording: Preamplifier-Equalizer 245 [Ampl/Mixer] ID = 1496194 933x305
Select picture or schematic to display from thumbnails on the right and click for download.
For model Preamplifier-Equalizer 245, Fairchild Recording Equipment Corp.; Whitestone NY:
aus ebay, #190877529285, mit Erlaubnis des Verkäufers mono

Country:  United States of America (USA)
Manufacturer / Brand:  Fairchild Recording Equipment Corp.; Whitestone NY
Year: 1959 ? Category: Audio Amplifier or -mixer

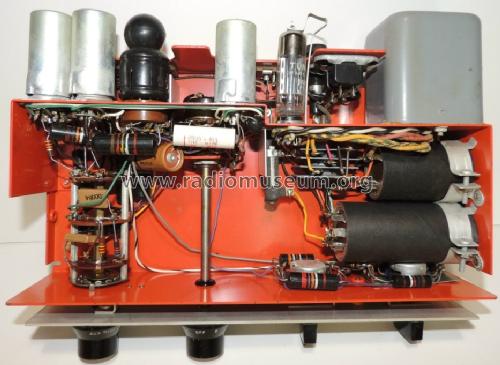

Valves / Tubes 4: EF86 EF86 ECC83 6X4
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Preamplifier-Equalizer 245 - Fairchild Recording Equipment
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11.5 x 8 x 3 inch / 292 x 203 x 76 mm

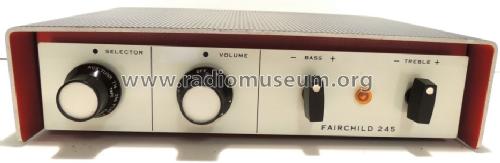

Notes The Fairchild Model 245 is an AC operated Audio Preamplifier.
Price in first year of sale 119.50 $

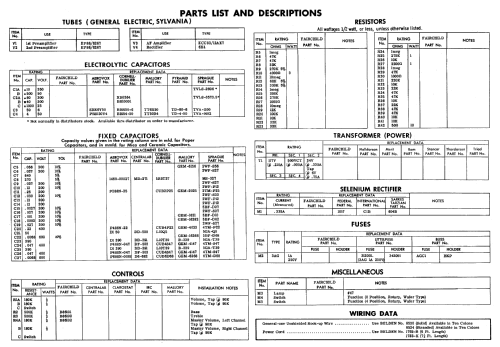

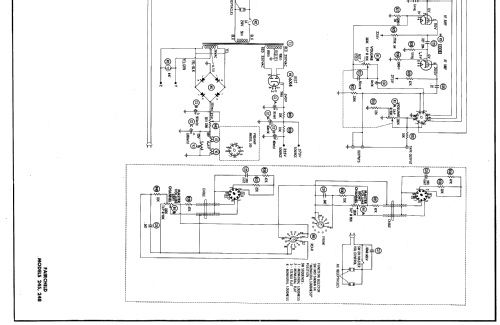

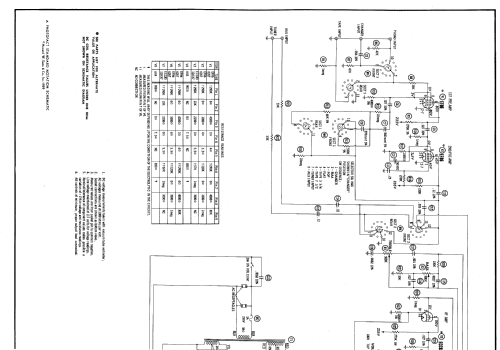

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-59, Set 437, Folder 6)
Literature/Schematics (2) - - Manufacturers Literature (Instruction Manual)

Model page created by Egon Penker. See "Data change" for further contributors.
