• Country
• France

• Manufacturer / Brand
• Familial Radio, G. Dubois; Fourmies, Paris, Glageon

• Year
• 1931 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214328

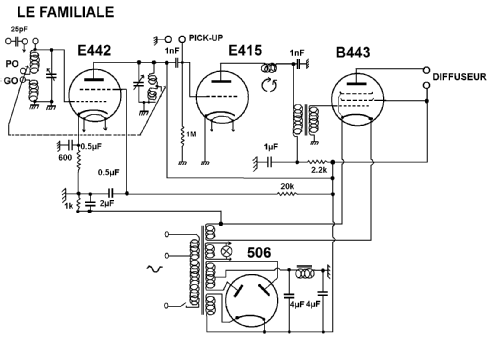

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E442 E415 B443 506

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200; 225 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

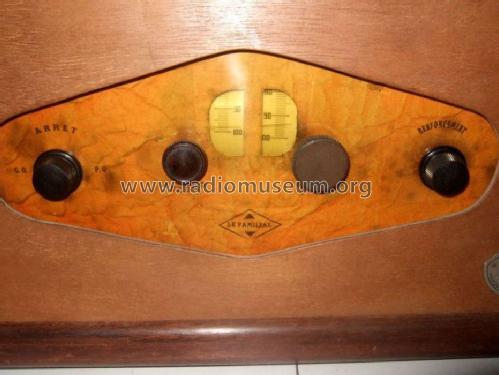

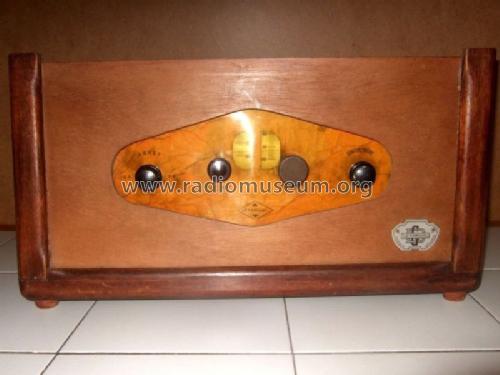

• Model: Inconnu - Unknown 4 [coffret bois] - Familial Radio, G. Dubois;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 260 x 240 mm / 18.9 x 10.2 x 9.4 inch

• Notes

• Voir la variante très similaire avec le boitier en métal.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Author
• Model page created by Bekir Yurdakul. See "Data change" for further contributors.
