BC-45

BC-45 ; Farnsworth (ID = 337168) Radio
BC-45 ; Farnsworth (ID = 1300009) Radio BC-45 ; Farnsworth (ID = 1300010) Radio
Use red slider bar for more.
BC-45 ; Farnsworth (ID = 1300009) Radio

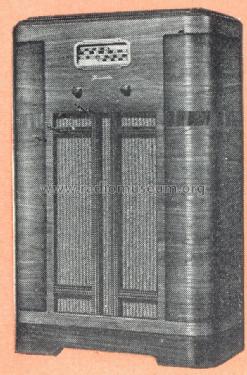

Farnsworth: BC-45 [Radio] ID = 1300009 600x908
Select picture or schematic to display from thumbnails on the right and click for download.
For model BC-45, Farnsworth Television & Radio Corp. - see also Capehart:
Scanned from the Farnsworth Folder "Radios for 1941...".

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7GT 1N5GT 1N5GT 3Q5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: BC-45 - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 23.5 x 36.25 x 10.375 inch / 597 x 921 x 264 mm
External source of data Ernst Erb
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
