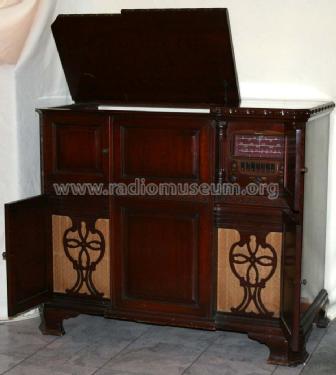

Capehart 113K2FM Chippendale ; Farnsworth (ID = 1322596) Radio
Farnsworth: Capehart 113K2FM Chippendale [Radio] ID = 1322596 933x1039
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart 113K2FM Chippendale, Farnsworth Television & Radio Corp. - see also Capehart

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1940/1941 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 20: 6SK7 6SA7 6SJ7 6SK7 6AF6G 6SK7 6SJ7 6H6 6J5GT 6J5GT 6Q7 6J5 6C8G 6V6G 6V6G 6V6G 6V6G 5Y3G 5Y3G 5Y3G
Main principle Superhet with RF-stage
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker 2 Loudspeakers / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Capehart 113K2FM Chippendale - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 43.75 x 37.625 x 22.25 inch / 1111 x 956 x 565 mm
Notes

Capehart 113K2FM Chippendale

The model Chippendale of saison 1940/41

Chassis:
Scale shows broadcast from 550 to 1600, SW 5.7 to 18 MHz and FM 42 to 51 MHz. 7 push buttons. Knobs for ON/Off and volume, bass, treble, tuning and wave changer. Magic Eye within scale.

See here the "Common information for the Capehart model pages for the 1930s and 1940s" and for the information about Series 100 here.

Price in first year of sale 775.00 $
Literature/Schematics (2) The Incomparable Capehart

Model page created by Ernst Erb. See "Data change" for further contributors.
