Capehart-Panamuse M series General pictures and information

Capehart-Panamuse M series General pictures and information; Farnsworth (ID = 1481301) Radio Capehart-Panamuse M series General pictures and information; Farnsworth (ID = 1481302) Radio
Capehart-Panamuse M series General pictures and information; Farnsworth (ID = 1481303) Radio
Use red slider bar for more.
Capehart-Panamuse M series General pictures and information; Farnsworth (ID = 1481301) Radio

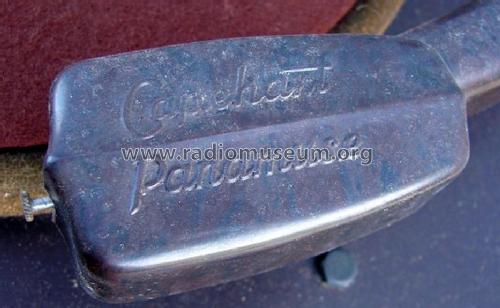

Farnsworth: Capehart-Panamuse M series General pictures and information [Radio] ID = 1481301 933x743
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart-Panamuse M series General pictures and information, Farnsworth Television & Radio Corp. - see also Capehart:
eBay seller radar-sandwich, Clarksville, Ohio, USA; auction 221224836472

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 20: 6SK7 6J5 6SA7 6SG7 6AF6G 6J5 6J5 6SG7 6SJ7 6H6 6Q7 6R7 6C8G 6V6G 6V6G 6V6G 6V6G 5Y3G 5Y3G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455/4300 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 2 Loudspeakers / Ø 12 inch = 30.5 cm
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Capehart-Panamuse M series General pictures and information - Farnsworth Television & Radio
Material Wooden case
Shape Console with Push Buttons.
Notes

The models Capehart-Panamuse M series exist for AM only or combined with low band FM reception. This chassis M-2-FM is with FM and has 5 tubes more than the AM chassis. The M-2-FM receives BB, SW, Band spread SW and FM. See details and summaries in this common text for Capehart Radio-Phonographs. Post 3 is specific for this last pre war model family and the changer used. This is only a sample page to bring general pictures (shared by the models) and general information about Panamuse M series, both AM or FM - see the different models for their details. See Rider's Capehart-Farnsworth page 20-1 to 20-16 for the tuners and amplifiers.

Literature/Schematics (1) Rider's Perpetual, Volume 20 = covering 1950 (Capehart, series M-2)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Farnsworth Television & Radio Corp. - see also Capehart
Here you find 392 models, 278 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
