• Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 40202

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.8 inch = 30 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: GK-112 - Farnsworth Television & Radio
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 33.25 x 36 x 17.75 inch / 845 x 914 x 451 mm
  • Notes

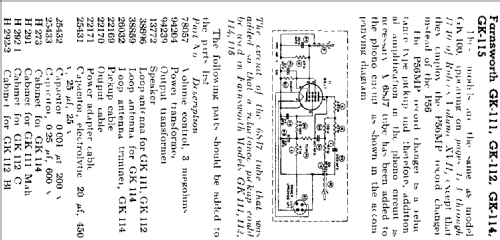

  • Record changer P-56MP. Built in loop antenna.

  • External source of data
  • Ernst Erb

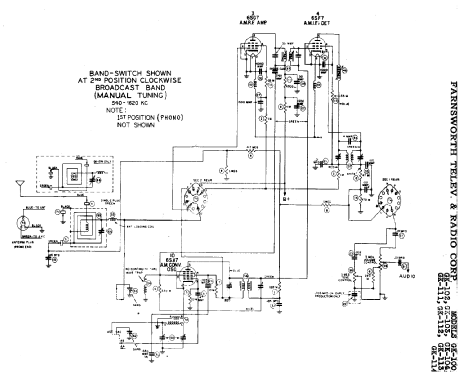

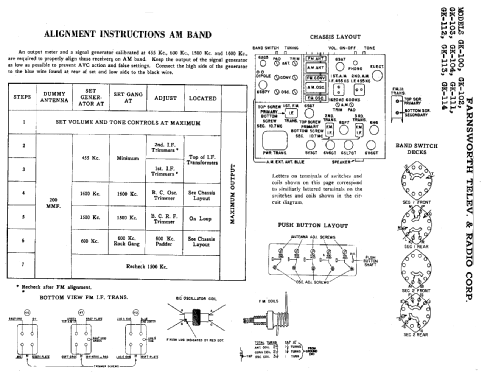

  • Circuit diagram reference
  • Rider's Perpetual, Volume 17 = 1948 and before
