• Country
• Italy

• Manufacturer / Brand
• Faro (Nuova Faro); Milano

• Year
• 1960 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 286180

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AQ5 12AV6 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

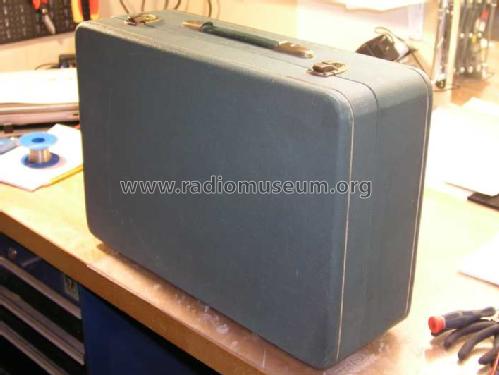

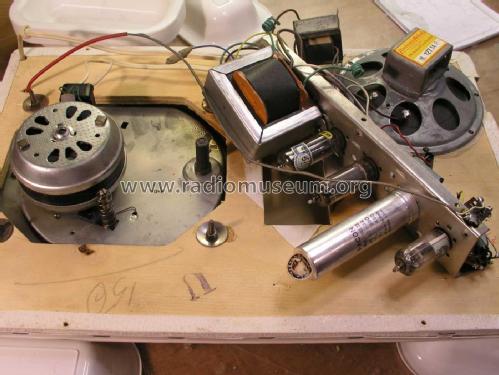

• Model: Happy Record - Faro Nuova Faro; Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 150 x 300 mm / 17.7 x 5.9 x 11.8 inch

• Author
• Model page created by Giampaolo Minetti. See "Data change" for further contributors.

• Other Models

• Here you find 17 models, 17 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
