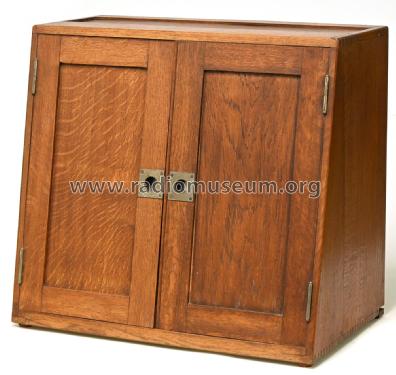

Brevets Marconi 4-Röhren 2-Türen

Favarger & Co.; Neuchâtel

Data
Forum
Pictures
Collections

  • Year
  • 1925/1926 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 362999

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 4 & 80 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Brevets Marconi 4-Röhren 2-Türen - Favarger & Co.; Neuchâtel
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 470 x 440 x 290 mm / 18.5 x 17.3 x 11.4 inch
  • Notes

  • Favarger 4-Röhren-Empfänger, mit Türen. Empfangsbereich 250 - 3000 m. Siehe auch ähnliches Modell ohne Türen.

    Marconi-Lizenzbau; HF-Teil wie 5- und 6-Röhren-Apparate.

  • Net weight (2.2 lb = 1 kg)
  • 12.4 kg / 27 lb 5 oz (27.313 lb)
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
